MedTek LDR

A revolution is taking place in Radiography Technology that allows acquiring and storing X-Ray Images fast and accurate, and diagnosing X-Ray Images instantly from anywhere possible. MedTek Low Dose Digital Radiology (LDR) offers the latest advances in Direct Digital technology ensuring low dose for the patient and instant high quality images for the radiologist.

Since 2002, MedTek LDR, through research and development, and innovative uses of the polycrystalline silicon semiconductor technology has produced serviceable linear array detectors, greatly reducing production costs and in turn the total cost for the digital medical imaging. The MedTek detector has high sensitivity, low radiation doses, density, high resolution, imaging speed, stable performance, low price, suitable for wide array of applications, and comes with ten years warranty.

The MedTek LDR system includes a workstation for diagnosis and an archive server. Integration with archive and viewing software makes the system suitable for fast and efficient diagnosis. Acquisition software is intuitively designed for easy use and is Windows based.

Image analysis can be done immediately on the diagnostic monitor, or at any location in the world by sending a compressed image to a centre equipped with well qualified radiologists.

Maximum daily throughput of 300 images can be achieved.

How MedTek LDR Works

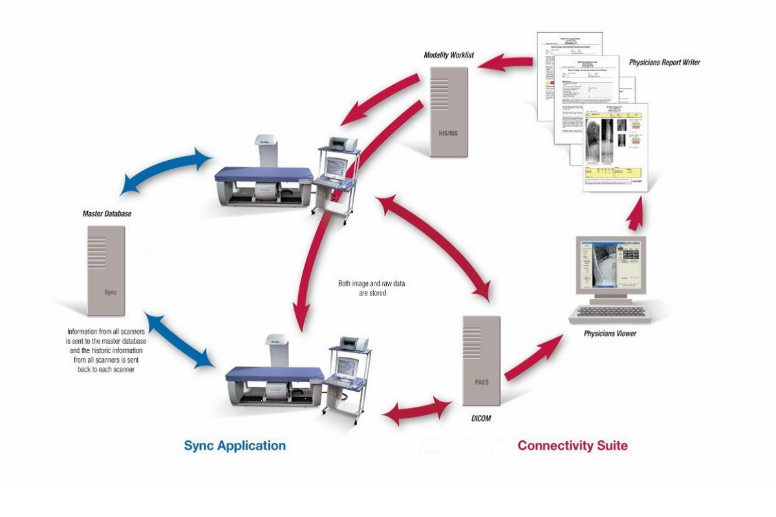

The radiological workflow starts with patient registration, which marks the time when the patient approaches the Admittance Front Office, and ends when the report is in the hands of the patient. The whole workflow process can be categorized into several steps involving Patient Registration, Execution, Reporting, Archiving, and Delivery. Obviously, the most important time differences between film-based versus filmless radiography are found in Execution, Reporting, and Archiving stages.

As far as Execution is concerned, the complete digital handling of images eliminates the use of film and all operations for film developing. A second advantage is that the bad images no longer require operators to perform the same examinations again. This clearly makes the digital x-ray examinations much faster than the traditional one.

The digital process also strongly influences the Reporting step as a result of the following factors: a large number of tools to speed up and optimize the analysis of the image as performed by the radiologist; Digital Archiving enables fast access to image database in case of comparison with previous examinations of the same patient; and the printing and signing of the report can be made practically at the same moment, directly from the radiologist. The whole digital process is filmless and paperless, avoiding also the need for people movements inside department.

In contrast to its traditional counterparts, by making the whole radiology workflow, filmless and paperless MedTEK LDR delivers very significant improvements and leads to an increase in the annual number of examinations, and a decrease in general costs. Moreover, the time needed for delivery of results is reduced.

Linear Array Detector

By using our innovative slit line scan technology and high sensitivity of the semiconductor line array detector, MedTek LDR eliminates up to 70% of the scattered radiation, with a unit pixel scan time of only 1 to 2.5 msec, drastically reducing the radiation dose. Typical Chest X-ray incident dose of <0.02mGy, is 1/15 to 1/30 times lower than the EC CEC X-ray radiation protection standard of 0.30 mGy. Using grayscale adjustment, a radiologist can observe the different densities of tissue, eliminating the need for duplicate photography, further lowering the overall radiation doses.

Line scan imaging technology provides fundamentally better imaging solution by significantly reducing the noise interference to the image, thereby improving DQE and low-contrast conditions, spatial resolution, allowing physicians to see more soft tissue, and wide dynamic range.

Contrast that with the conventioanl Surface exposure imaging mode, the background noise is large, the dynamic range is narrow, there are many weak signals which get locally masked by noise, reducing the low contrast conditions, and spatial resolution.

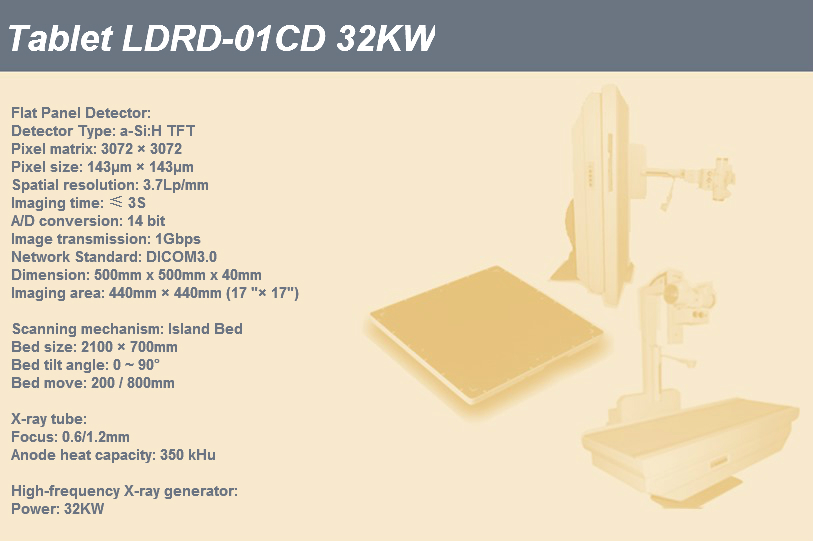

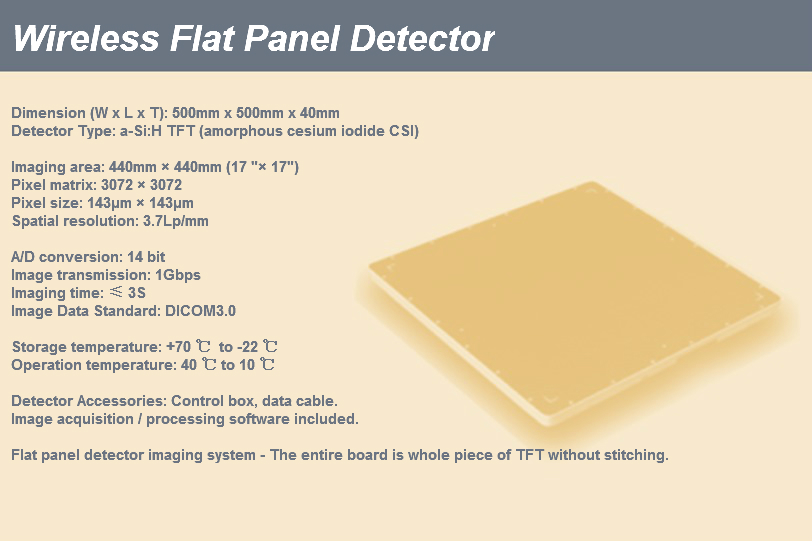

Wireless Flat Panel Detector

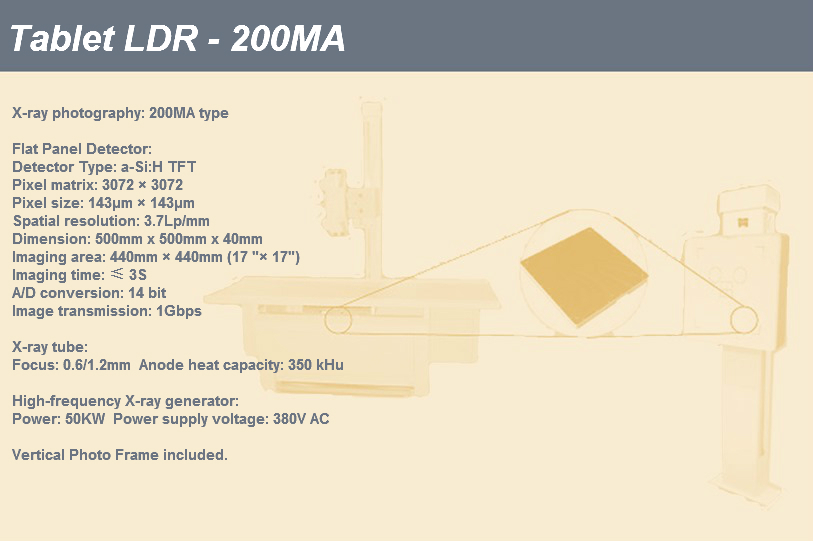

Our flat-panel detector and the image processing software received the SFDA certification in November, 2010. The 17 * 17 inch flat panel detector consists of an entire board structure of cesium iodide amorphous silicon (whole piece of non-spliced TFT - without stitching). The Tablet DR offers pixel size of 143 microns, and the system spatial resolution of 3.7Lp/mm.

The detector's light weight (13 lbs / 6kg) and wireless operation provide convenient handling and unprecedented positioning flexibility, making it possible to simply install it on a modified bed or a trolley. It also provides the needed freedom to capture difficult or unusual x-ray projections such as in an operating room, immobilized patients, intensive care unit and emergency situations.

The image processing software supports a number of different configurations, using either a single detector, or combinations of several detectors. This feature facilitates easy management of the company's entire range of X-ray detectors.

• Show All

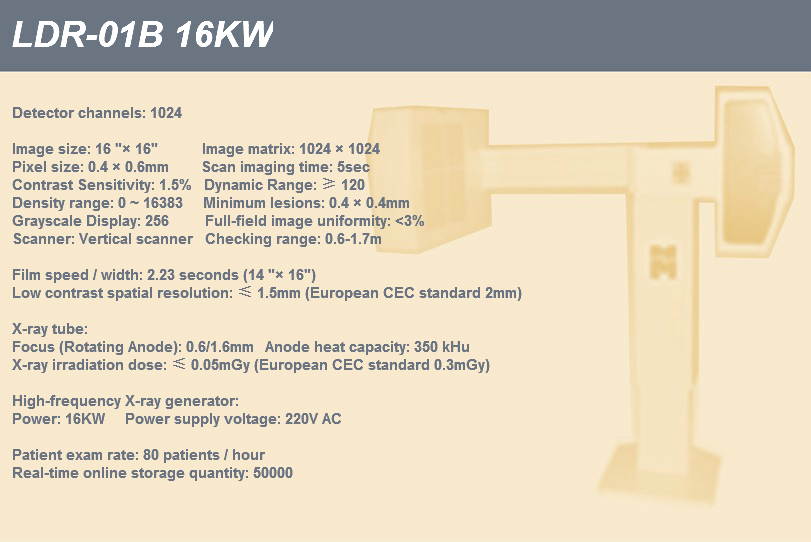

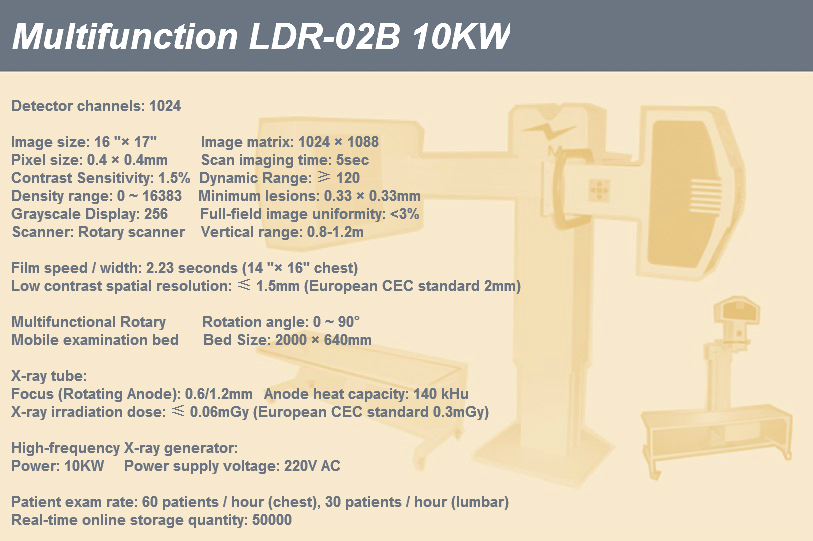

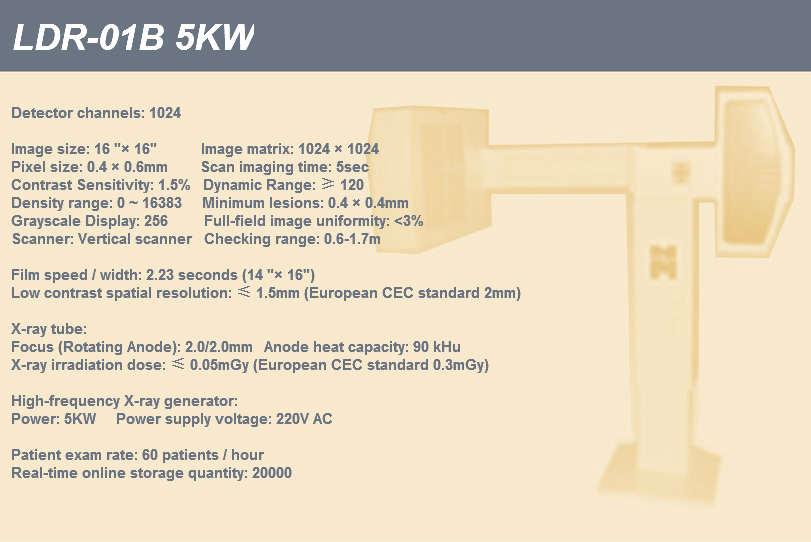

• LDR Models

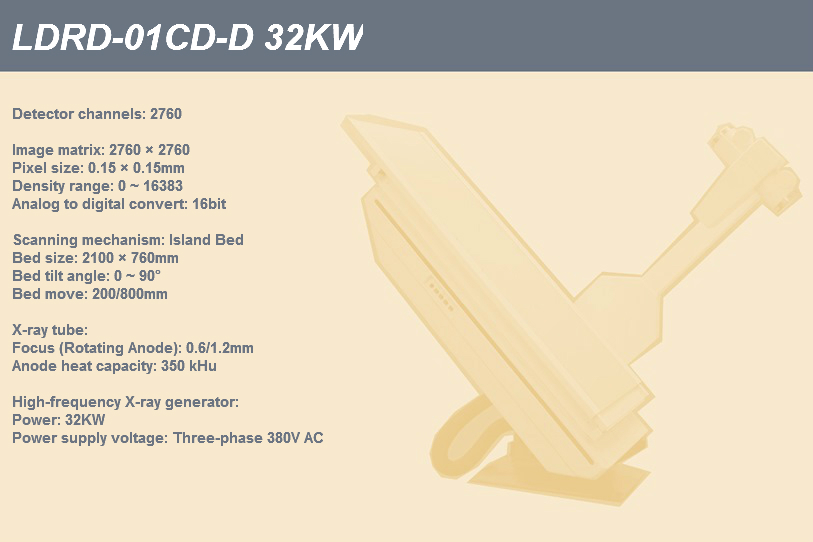

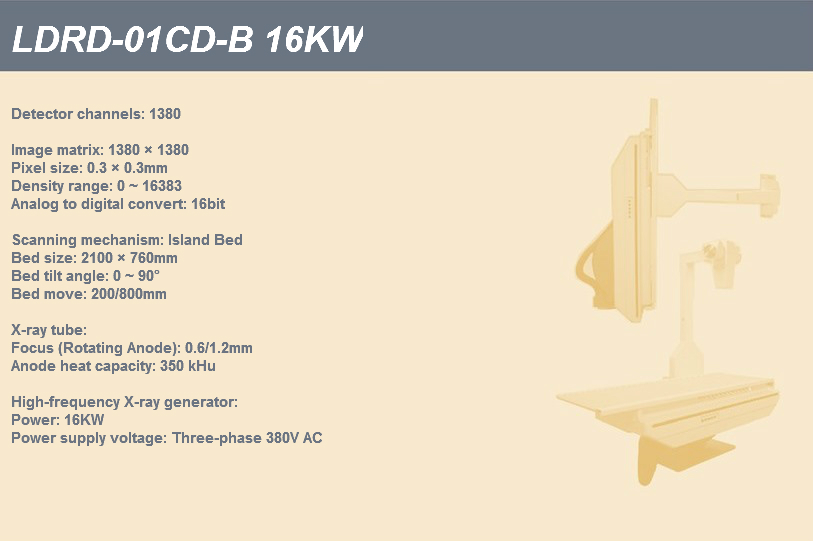

• LDRD Models

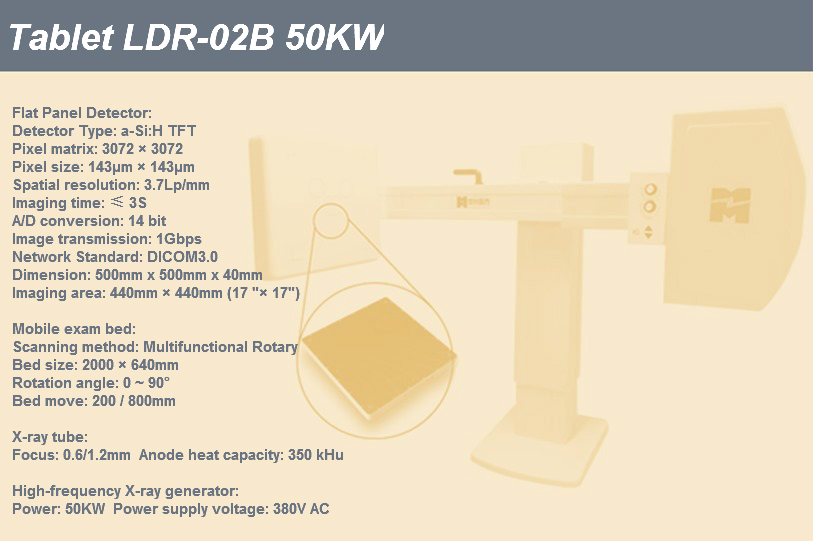

• Tablet LDR

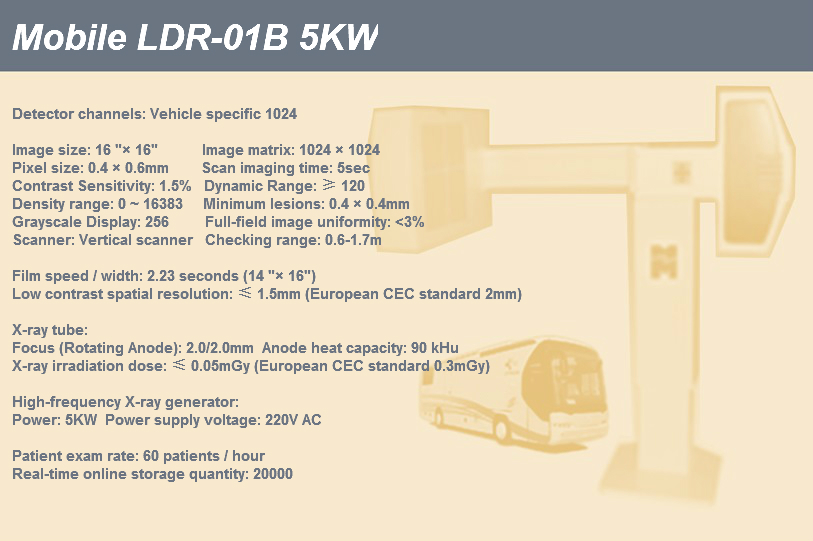

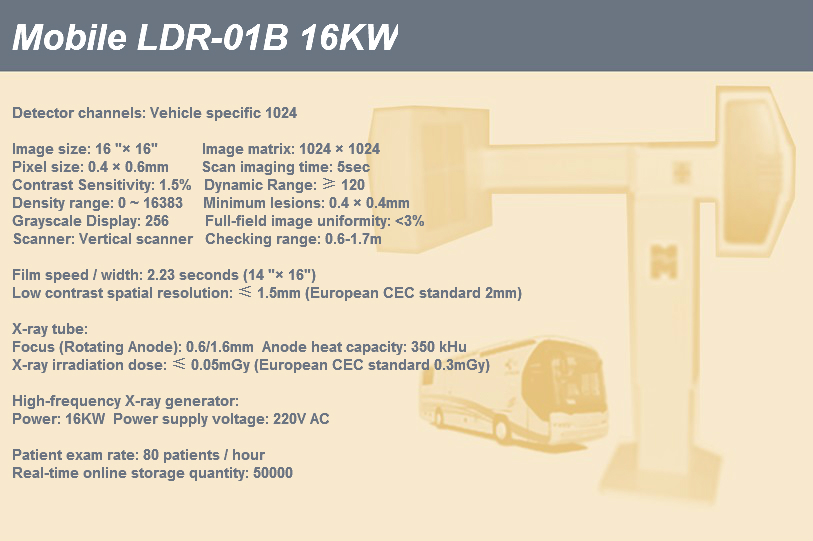

• Mobile LDR

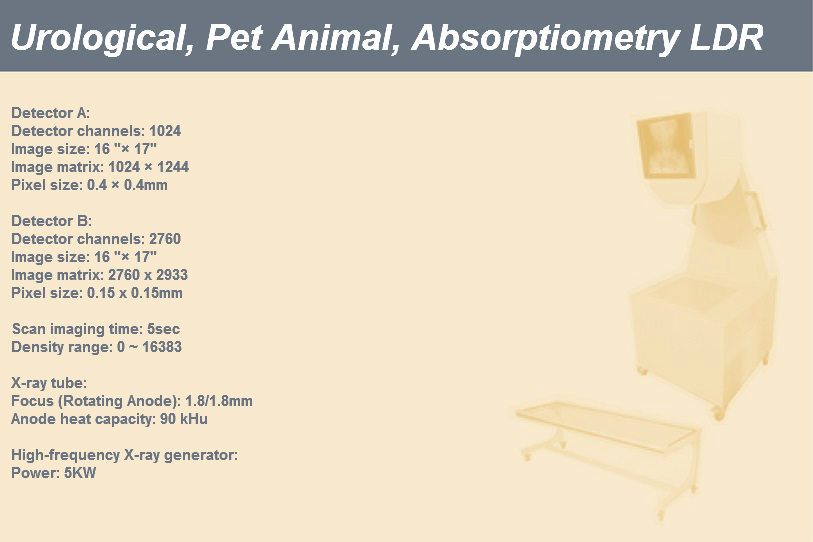

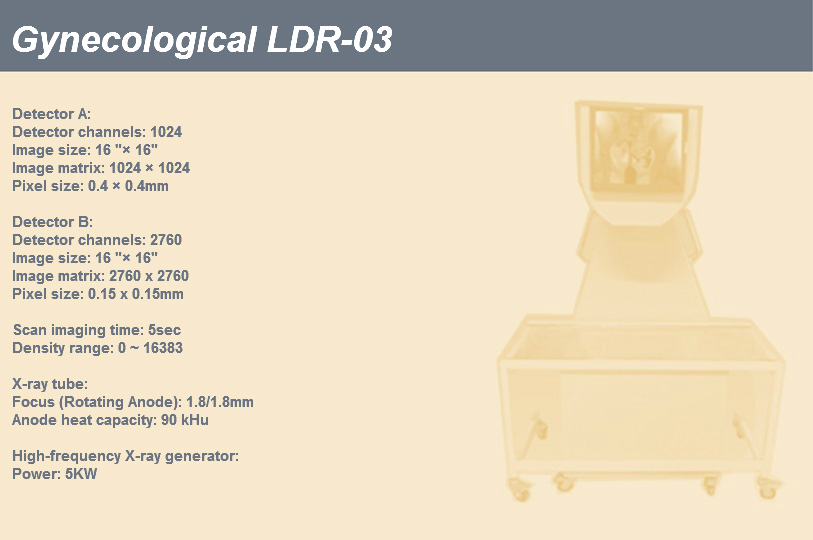

• Specialty LDR

By applying the state-of-the-art Direct Digital X-ray (DDX) technology to everyday medical radiography systems, our MedTek range of Digital Radiography (DR) equipments have managed to achieve top quality medical imaging at an affordable price point. The imaging software is fully compatible with hospitals's existing IT systems and functionality is optimized for mainstream applications.

By choosing to only work with the world's most trusted suppliers, we offer you options that range from the most premium to those that meet your budgetary constraints without sacrificing on quality. MedTek understands your unique requirements, and offers a choice of applications for:

• Hospitals
• Imaging Centers
• Dental Practices
• Physician Practices
• Pediatric Imaging
• Women’s Healthcare
• Oncology Imaging
• Veterinary Practices
• Public Healthcare

SACAYA Health Care Pvt Ltd, India (A unit of SACAYA Corp Inc., USA) is the company behind MEDTEK brand of Medical Technology offerings. SACAYA Health Care provides an extensive expertise in turnkey Medical Technology Solutions. Our highly experienced staff at the Bangalore facility provide a full range of services from system design, installation, and maintenance, to prompt after-sales local support.

MEDTEK line of Direct Digital Radiology technology, is being introduced in India through an exclusive tie up with "Beijing Aerospace Zhongxing Medical System", a worldwide leader in breakthrough Digital X-Ray technology innovation.

Why Choose Us

By collaborating with our organization for your Digital X-Ray requirements, you will be partnering with a professional team of talented engineers and technicians who have undergone extensive training on MEDTEK family of Digital X-Ray devices. Our team has the requisite ability, experience, and drive to cost effectively design, deploy, and support your X-Ray diagnosis needs whether you are a clinic, a diagnostic center, a hospital chain, or a governmental establishment.

Our Mission: Sacaya's mission is to be the technology partner of choice for its customers in bringing cutting edge products and solutions to the marketplace. We aim to achieve this without compromising quality and maintaining low costs through high-end research and process improvement.

Our rigorous manufacturing process and adherence to the highest level quality assurance measures guarantees that every product will provide years of trouble-free operations. As a testimonial to our commitment to quality, SACAYA proudly backs every MEDTEK radiographic system with 10 years parts warranty, the best warranty in the industry.

SACAYA Health Care has served hundreds of global customers over the last decade. Our MEDTEK (Medical Technology) Solutions are designed to meet the needs of businesses across all sectors of medical clinics, diagnostic centers, hospitals chains, and government providers. We do not take a "one size fits all" approach; our team can design a solution to perfectly match the needs of a particular client, or we can provide off the shelf products and services if these are more suitable.

We are highly flexible in what we do, and this allows us to work for businesses of every shape and size. Our clients range from small and medium size enterprises to some of the biggest and most prominent employers operating today, including major government departments and global private sector brands.

But don't take just our word for it; contact us to get the relevant client references in your vertical, so that you can speak directly to find out what our clients have to say about us.

•
•
•
•
•
•
•
•
•
•
•
•

For Health Professionals

Some staff recommended whitepapers, brochures, etc. on MEDTEK Digital Radiology Technology follows:

For Patients and Public

Some staff recommended information for Patients and Public on MEDTEK Digital Radiology Technology follows:
